What
measurements do I take?
There are five measurementsto take - three across the hood and a diagonal
across each side window.

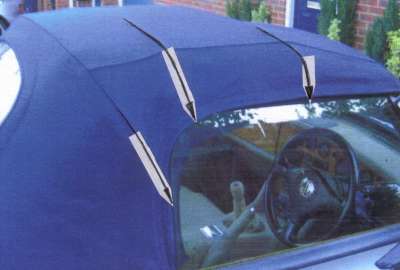

Measuring the
front, middle and rear hoops
ensuring the tape measure rests directly on top of the frame line
as shown and is be kept taught. The measurement is taken to the door
glass edge on each side of the car. (Photo: Mike Lane)

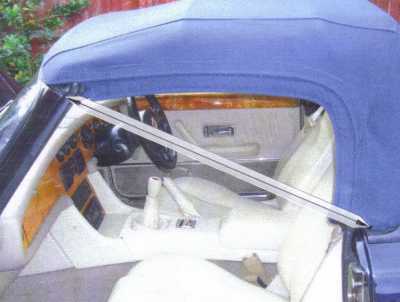

Diagonal dimension
across the side window between the centre of the lower side press-stud
and the top corner of the screen frame on each side of the car. (Photo:
Mike Lane)

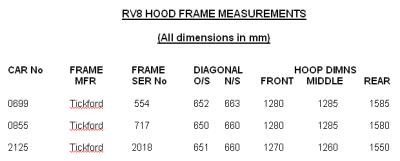

Initial
measurements on three RV8s

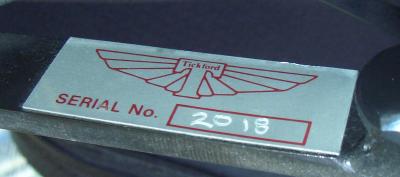

Read the serial number
on the hood frame |
RV8
hood mini survey
Help Mike Lane compile information which will identify the chassis
number or VIN change point for the new pattern of hood frame. By
publishing that change point for fellow RV8 members they will be
able to check which pattern of hood frame they are likely to have
and then hopefully avoid the time wasting frustrations Mike has
experienced. Why not get out your tape measure and do it now. Full
details of what measurements you need to take are provided alongside.
What measurements do I take?
There are five measurements to take - three across the hood and
a diagonal across each side window. Print off a form so you write
down the measurements and details you need when you take your tape
measure and a ballpen out to the car! The "Car No." is
the VIN on your Vehicle Registration Document or plate on the car.
Measurements
form
Online mini survey form
Our online mini survey form is very simple to complete and will
only take a minute.
Online mini survey form
Mini survey results
They will be updated online as members' data comes in.
Mini
survey results
Where can I read the two
workshop notes on this replacement hoods difficulty?
Replacing an RV8 hood
Mike Lane (Oxford Blue 0855) from Andover Hampshire recently had
a number of new hoods fitted. Here he highlights a problem - there
are two types of hood frame! RV8NOTE262
More on replacement RV8 hoods
Mike Lane (Oxford Blue 0855) from Andover recently had a number
of replacement hoods fitted and found discrepancies. RV8NOTE268
Contacting
Mike Lane
