I have water in my V8 legwells!
Why was it called "Ted's knob"?
The late Geoff Allen, (our former V8 Historian & Archivist and
someone who worked at the MG Plant for 27 years most in Rectifications
Department), referred to it as "Ted's Knob" as that was
the name of the part on the production line where a fellow with a
reputation with ladies was very able at fitting the part!
If you decide
to change the engine oil when cleaning out the drain tube, do remember
to use a new compressible copper washer (213961 Drain Plug
Seal) on the sump bolt to help avoid an oil drip from the sump drain
plug. It's worth buying half a dozen when you next visit an MGV8 parts
supplier and keep them in the small ash tray just behind the gearstick
so one will be easily available when you next need a replacement!
MGBV8
drain plug seal 21391/6K431
For information:
RV8
sump drain plug seal 6K431
Posted: 190614 & 190620 |
 |
Following
the heavy rain over the last week I have had a few calls from
fellow members about water in the legwells in their MGBGTV8s
where the car has been outside in the rain. The first thing
to check is whether the drain at the bottom of the air vent
chamber beneath the chrome air vent grille in front of the windscreen
is blocked with an accumulation of debris - leaves, dust and
grit.
The original drain tube fitted at the MG Plant was a rubber
item which is graphically displayed in V8NOTE452!
There are now more tasteful items available as replacement parts
from Brown & Gammons although it must be stressed you would
not want to have to fit one as they are a devil to ft! So do
take very great care when cleaning out the rubber drain tube
not to pull the wretched item off its mounting on the car!

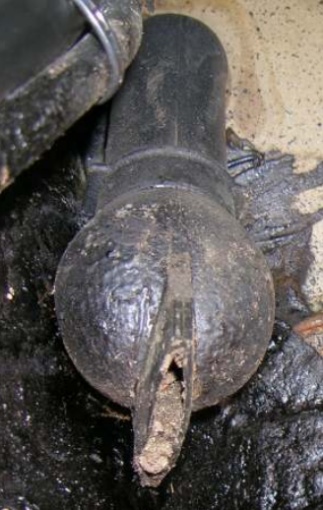

Alongside you can see the drain tube with the drain slot at
bottom of the tube blocked with an accumulation of dust and
grit. Careful use of a small screwdriver can release this material
and leave the drain clear to function correctly. To access the
drain tube you will need to drive your MGBGTV8 up on to a pair
of metal ramps. Then you will be able to get under the car just
below the bulkhead where you will see the graphic item there!
When cleaning the drain tube it is well worth wearing some goggles
to avoid material falling into your eyes.
See an article
with links to several V8NOTES on this topic. |
|
